How To Read A Topographic MapToday I’ve got a really important survival skill to share…

A Complete Guide To Using A Topographical Map For Survival

These amazing maps include a treasure trove of valuable information.

  • Topo maps are essential for planning off-road routes.
  • And a must-have in the heat of battle.

But they’re worthless IF you don’t know what the lines and symbols mean.

TOPICS IN THIS GUIDE…    ↓(click to jump)
Survival Gear Checklist eBook Cover -with fire piston on a rock and campfire in the background

Want a free 54 item survival gear checklist?

Enter your email below to instantly download this Complete Checklist PDF. No purchase necessary. 👇 👇

How To Read A Topo Map

What Is A Topographical Map?

Topographic is the adjective form of the noun topography.

This refers to the land’s surface features.

Topographic maps are sometimes called topo maps for short.

It’s a way to show three-dimensional terrain in 2-dimensional form.

So a topo map indicates unique land features, such as:

  • Mountains
  • Hills
  • Valleys
  • And Cliffs

This is typically done with wavy lines representing elevation.

↓ REI – How To Read A Topo Map

Prepper Checklist eBook Cover - with gas mask on a SHTF scenery background

Want a free 78 item prepper checklist?

Enter your email below to instantly download this Complete Checklist PDF. No purchase necessary. 👇 👇

Why You Should Invest In Topographic Maps

Topographic maps are frequently used by hikers to navigate their routes.

But they’re used more than just for recreation.

For example:

They’re often used by surveyors, architects, biologists, paleontologists, hunting outfitters, etc.

Essentially they’re for anyone who needs to know detailed terrain information.

They are also an ideal tool for making bug-out escape plans.

They help create multiple escape routes out of a city by avoiding dangerous terrain (such as steep ravines or cliffs).

But these maps show you the best routes to stay hidden.

But they’re NOT intuitive to read or understand the first time you see one.

↓ How To Read A Topo Map

Survival Gear Checklist eBook Cover -with fire piston on a rock and campfire in the background

Want a free 54 item survival gear checklist?

Enter your email below to instantly download this Complete Checklist PDF. No purchase necessary. 👇 👇

How To Read A Topographic Map

To understand how to read a topo map, you must first learn the main features:

  • Contour Lines
  • Colors
  • Shading

Again, the primary goal of topo maps is to represent the shape of the earth in 2 dimensions.

But it also includes additional info such as streets, trails, vegetation, and water sources (lakes, streams, swamps, etc.).

Plus, a few other terrain features to navigate and travel through.

So let’s break down each factor in more detail and with visual examples.

Contour Lines | Map Scales

The key to understanding contour lines on the map is to realize they don’t exist in nature.

Contour lines are NOT paths or trails.

They are a symbolic lines that represent a constant elevation above sea level.

So if a contour line reads at 600 feet above sea level, everywhere that line goes is 600 feet above sea level.

For example:

If you walked this “imaginary/symbolic” path, you would not be pointing uphill or pointing downhill.

Theoretically, your hike would remain at a constant flat elevation.

A nice leisurely flat stroll.

But again, these lines are not real trails or roads.

They represent constant elevation, no more, no less.

Now, there are different types of contour lines.

Index Lines

There are lines that are darker in color.

These are known as index contour lines.

These typically include an elevation number associated with them.

For most topographical maps, every 5th contour line is an index.

Intermediate Lines

Between index contour lines, you have intermediate contour lines.

These lines serve the same function as index lines.

Except they don’t include an elevation number.

Not providing the elevation number with intermediate contour lines is done for purposes of clarity.

Because the more lines the easier it is to visualize elevation changes.

But the map would quickly become a cluttered mess if every contour line was numbered.

Making it impossible to read.

So intermediate contour lines fill in the gaps between the index contour lines.

These extra contour lines provide a better visual representation of a terrain’s elevation without unnecessary clutter.

Supplementary Lines

Finally, there is a third variety of contour lines called supplementary contour lines.

These lines are only used on maps or in very flat regions with very few elevation changes.

These dashed lines represent an elevation that’s halfway between two intermediate contour lines.

Without supplementary contour lines, there would be no contour lines in flat areas.

However, if there’s some elevation change, the supplementary contour lines will show that.

Just remember this:

The closer the contour lines are to each other, the more rapid the change in elevation.

When contour lines are far apart, the terrain is flat – think leisurely stroll.

But, if the lines are packed and stacked right next to each other, you’re looking at a cliff.

If they are moderately spaced, but you’ll cross several in a mile-long hike, it’s not a cliff.

But it’s still going to take some work to hike.

Here’s an example of using topographic contour lines:

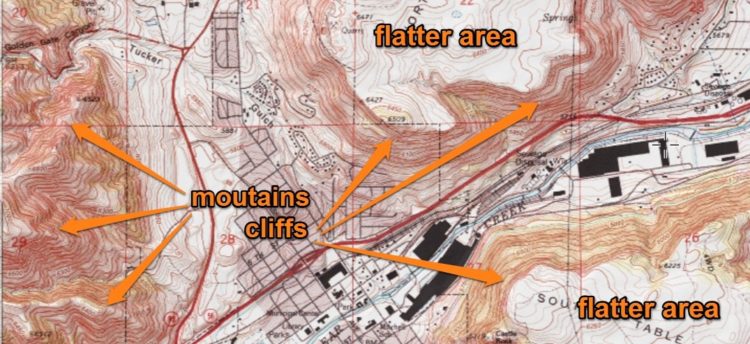

Topographic Contour Lines

Colors

The colors on most topographic maps tell you something about the terrain.

In general, brown is used for the color of the contour lines.

  • Green represents vegetation areas such as woods or forest areas.
  • Blue denotes water and features (lakes, rivers, streams, swamps, oceans, etc.).

One exception to note is at high elevations; some contour lines may be drawn in blue.

These blue lines represent locations with year-round snowcapped areas or glaciers.

Assume these areas require special gear to transverse, such as pickaxes, crampons, etc.

Finally, the color black is used to denote man-made objects, including trails.

  • Red represents man-made features such as roads and boundaries.
  • Purple is used to note updates or changes to the map from a previous rendition.

Here’s an example using topographic colors:

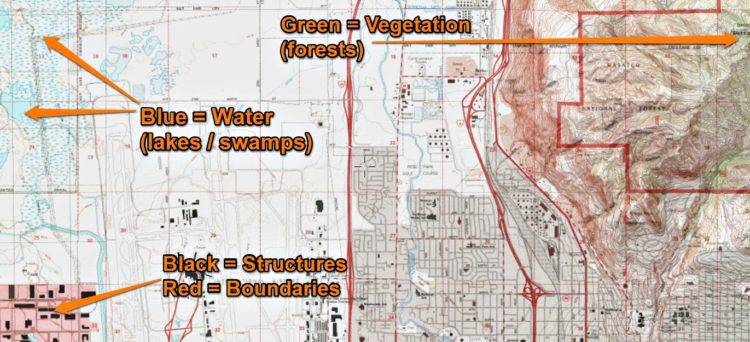

Topographic Colors

Public lands vs. private lands may also be a unique color to designate that difference.

Shading

Topo maps use lots of subtle shading changes to denote slightly different terrain.

For example:

There are several varieties of swampland, each different:

  • Marsh or swamp
  • Submerged marsh or swamp
  • Wooded marsh or swamp
  • Submerged wooded marsh or swamp
  • Land subject to inundation

The main thing is to keep USGS Topographical Map Symbols handy for quick reference.

That’s easier than trying to memorize each slightly different shading variation.

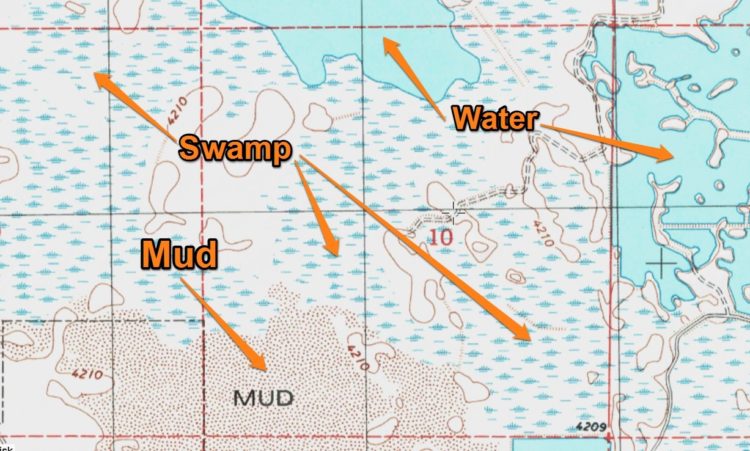

Topographic Shading

Putting It All Together

Now it’s time to put this new knowledge to practice.

Let’s take a look at 2 examples that have a lot going on.

This first one is in the heart of the Rocky Mountains.

As you can see in this example: 1) index contours, 2) intermediate contours, 3) flatter areas, 4) sheer cliffs, 5) water, 6) vegetation (forest), 7) glacier, and 8) hiking trail.

Topographic Map Reading Example 1

This second example is from the swamplands of Texas.

Notice how much flatter this area of the US is, especially compared to the Rocky Mountains.

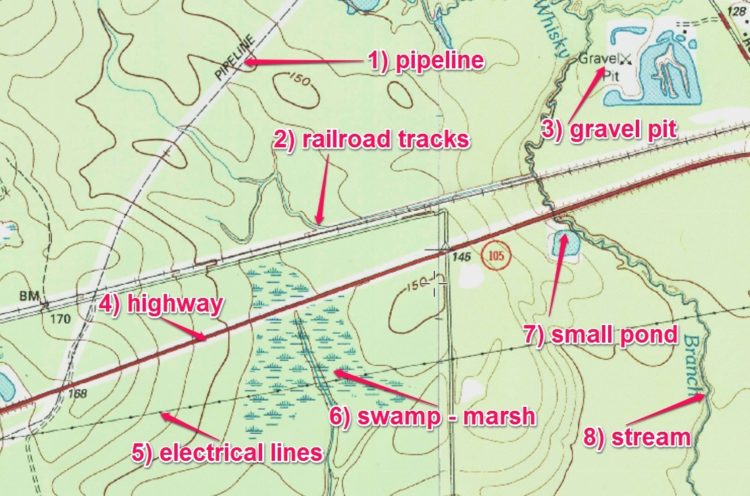

As you can see in this example: 1) a pipeline 2) railroad tracks 3) a gravel pit 4) a highway 5) electrical lines 6) a swamp 7) a small pond and 8) a stream.

Topographic Map Reading Example 2

Now that you understand how to read a topographic map, it’s time to get your hands on some maps to practice your new survival skill.

Survival Gear Checklist eBook Cover -with fire piston on a rock and campfire in the background

Want a free 54 item survival gear checklist?

Enter your email below to instantly download this Complete Checklist PDF. No purchase necessary. 👇 👇

Best Topographic Maps On The Market Today

First off, I want to say, “I love my topographic maps.”

I’ve found myself pouring over them for hours, looking at all the trails and ravines, overlooks, and cliff edges.

It’s fascinating to me.

And over the years, I’ve invested in what I consider THE BEST Topo maps – The Trails Illustrated Series.

National Geographic Trails Illustrated Topo Maps

National Geographic Trails Illustrated Map Series

Trails Illustrated Topo maps are both waterproof and tear-resistant.

They look and feel like quality and can take a beating from the elements.

They are a must-own if you’re a serious hiker, backpacker, mountain climber, or mountain biker.

Here’s the list of Trails Illustrated Topo Maps I own:

I own several that cover the area surrounding where I live, and I also buy one anytime I’m about to visit a national park.

They are the “gold standard” of topographic maps; if you can find one for your local area, get it!

↓ Exploring Trails Illustrated National Geographic Topo Maps

Delorme Atlas & Gazetteer State Topographic Maps

Now, if you can’t find Trails Illustrated for your local area, your next best option is Delorme Atlas & Gazetteer State Topographic Maps.

These maps are broken down by state, and each page is a sub-section of part of the state.

This feature means the map covers A LOT of areas but also allows for enough detail to be helpful.

Plus, these maps offer simple elevation lines and shading in order to give you decent topographic information.

↓ How NOT To Get Lost – Review DeLorme State Atlas!

Prepper Checklist eBook Cover - with gas mask on a SHTF scenery background

Want a free 78 item prepper checklist?

Enter your email below to instantly download this Complete Checklist PDF. No purchase necessary. 👇 👇

How To Print A Paper Map Online

If you can’t find a Trails Illustrated Topo Map, I recommend you print topographical map sections for your local area.

Then venture out and begin associating your actual terrain to your topographical map.

Practicing will help you understand what the map is trying to tell you.

The good news is:

Nowadays, getting your hands on topographic map data is both easy and free.

You can find an excellent source of free topo maps here.

Once there, this is what you’ll see:

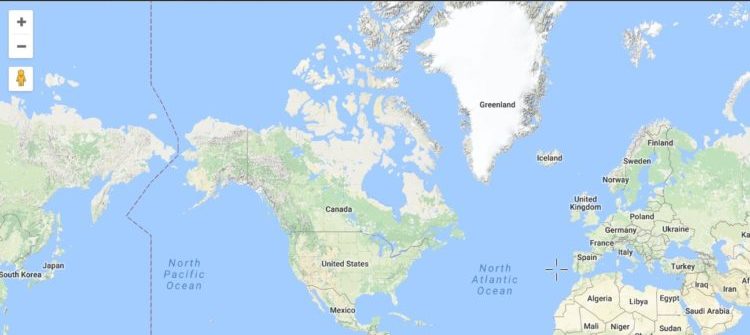

Topographic MappingSupport 1

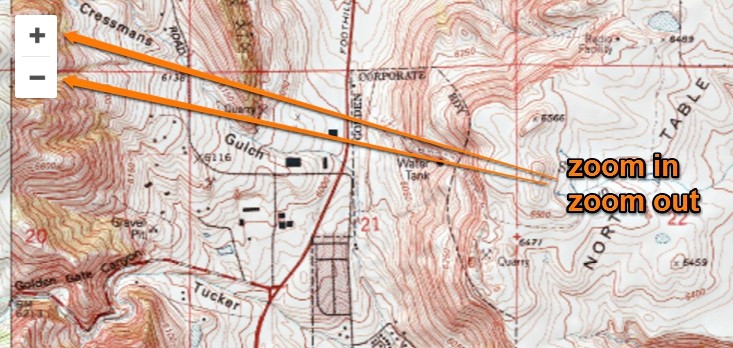

Now use the Zoom In / Zoom Out buttons and click/drag to scroll around.

Topographic MappingSupport 5

Once you have the data you want on the screen, you can either use a “print screen” button on your computer or any screen capture app to print off what you see.

Final Thoughts

Topo maps are perfect for survival and preparedness planning.

They are essential if you’re planning a bug-out route and also necessary for planning get-home routes.

Heck, they are perfect for any future outdoor adventure.

Using a topo map will make your next hike, backpack, or hunt that much better.

Topographical maps help you steer clear of terrain that would put you in a bad situation.

Learning how to read a topographic map can save lives.
